Stefko, J, 1998, Technical University Zvolen
Background
Actual structures of wooden family houses enable to increase the energy
consumption but in the other
hand mean the risk of impairment of indoor quality. Light opaque structures
are especially sensible to
excessive thermal gains in the summer time. Dynamic simulation methods
enable to predict the indoor quality as well as the energy consumption
and to influence them in the design process p. e. by the configuration
of building or control devices.
Project
Technical University Zvolen - Departement of Wooden Structures collaborates
with BUCINA on the project of wooden family houses. There should be presented
the utilizing of simulation in esp-r program
on the realized examples of houses.
1. Analysis of energy consumption and indoor quality of wooden family house.
Simulation is presented on the model of wooden family house (fig.1)

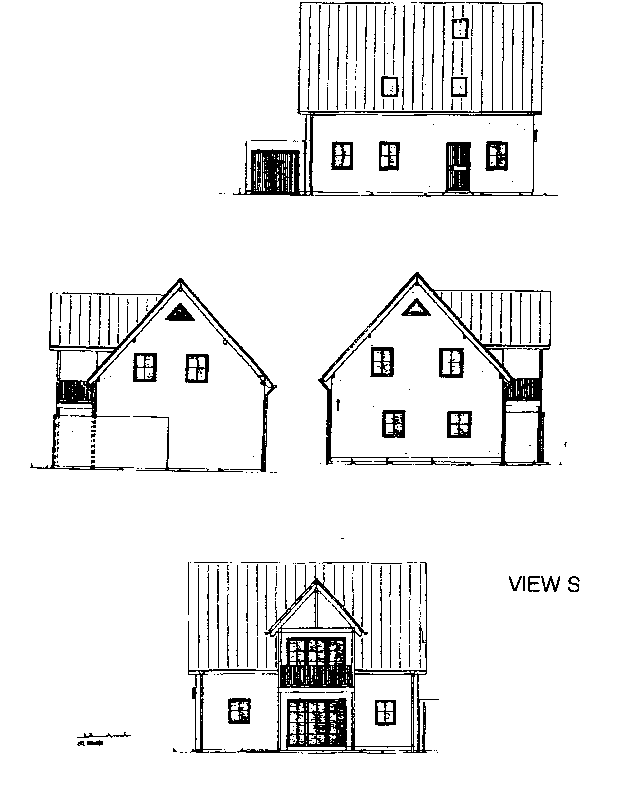

FIG. 1: Views
A multizone model of building respecting the position of the rooms was
made in esp-r manager. Thermal proprieties of enclosure structures are
in Tab. 1.

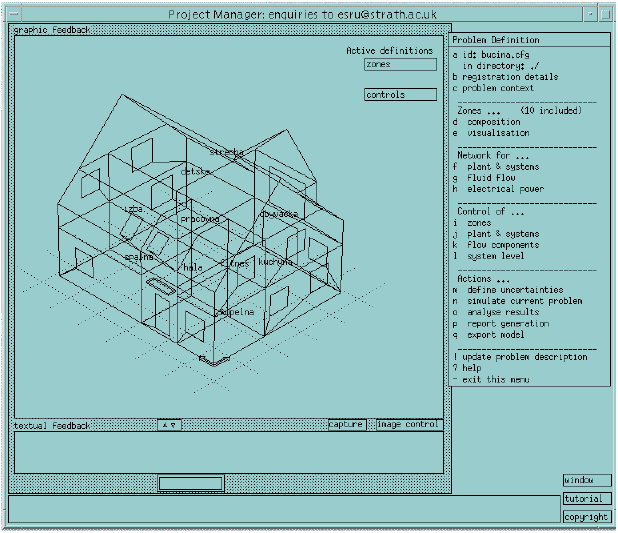

FIG. 2: Multizonal model of building in esp-r manager
TAB. 1: Thermal proprieties of enclosed structures
NO. | Structure | u-value [W/m2/K} |
1. | Walls | 0.22 |
2. | Windows | 1.7 |
3. | Roof | 0.18 |
4. | Ceiling | 0.18 |
5. | Floor | 0.35 |
There were simulated air exchange 0.8 /hour and thermostatically controlled heating. Reference year were selected as characteristic for Slovak region.
Step 1: Simulation of model with ideal control in heating season minimal 20 grad. C.
Energy consumption values are in Tab. 2
TAB 2: Energy consumption simulated in step 1:
Zona (SK) | Zone (Eng) | Energy required | Heating time |
detska | Child | 1378.7 | 4965 |
fitnes | Fitness | 485.5 | 3606 |
hala | Staircase | 127.4 | 1600 |
izba | Room | 1110.7 | 4341 |
kuchyna | Kitchen | 2272.4 | 4479 |
kupelna | Bathroom | 703.0 | 4141 |
obyvacka | Living room | 1841.2 | 4010 |
pracovna | Master room | 1445.7 | 5305 |
spalna | Bedroom | 1103.7 | 4592 |
Total | 10468.3 |
Step 2: Interrupted thermostatically controlled heating.
Setting the thermostat to value in night min. 15 grad. C led to unacceptable
indoor climate. Acceptable climate in simulated model should be ensured
only by regulation thermostat to value 17.5 grad. C in night time.

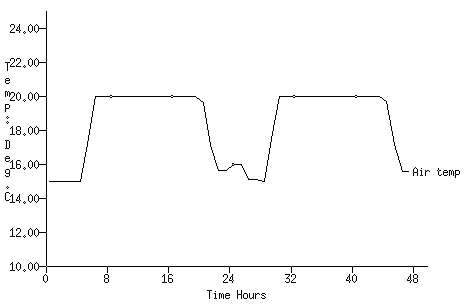

FIG. 3: Time-var. graph of indoor temperature in zone "Living room"
in heating period with
interrupted
heating
2. Analysis of indoor quality in summer time
There are values of indoor temperature in july presented at Fig. 4 that
indicate the extreme impairment of indoor quality in summer time in extreme
positioned zone "Living room" caused by redundant solar gains
and low accumulation of light structures

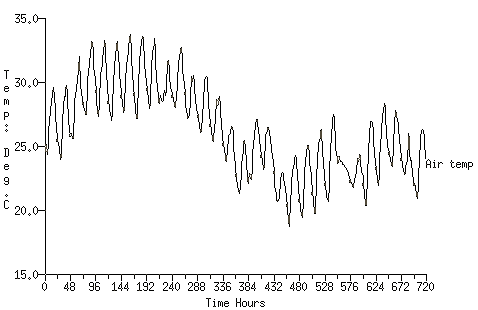

FIG. 4: Time-var. graph of indoor temperature in zone "Living room"
in hottest july days
Implementation of control devices (shading by shutter) and higher air
exchange on the model enabled to
increase the indoor temperature to acceptable values presented at Fig.
5
FIG. 4: Time-var. graph of indoor temperature in zone "Living room"
in hottest july days - model
with shutters and air exchange 0.8 - 2.0 /hour (function represented
opening and shutting the windows).
For more information Stefko, J, Technical University Zvolen
